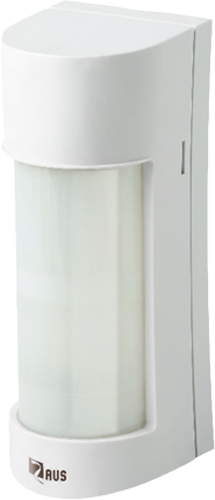

SPECTRUM PA WS WALL AM | Bidirectional Wireless Double Side Double PIR Outdoor Detector with Antimasking

Brand: AVS
Product Code: AS01132136

Detection through double side (right + left) and double PIR
Detection range from 3 to 12 meters per side
Double IR antimasking protection
AM adjustable detection distance
Antimasking with ACTIVE IR
Tamper through accelerometer
Digital temperature compensation
Light filter
Detection angle up to 100°
Orientation horizontal plane 180°
Installation heigh: 1,2 meters with standard lens – 2,2 meters with SSL optional lens
PET Immunity up to 70 cm from the ground
Power consumption in stand-by: 15 µA – Power consumption in alarm: 34 mA
Frequency: FM 868MHz
Multi frequency bidirectional
Radio coverage: up to 700 m. in open air
Wireless report for alarm
Wireless report for tamper
Wireless report for low battery
Wireless report for survival
Data sent: self-test, detector model, battery voltage
Working temperature
Easy programming: self-learning on CP
Parameters settings via CP, laptop (with XWIN software) or APP MYAVSMANAGER
Walk test with led and buzzer activation
Power supply: 3.6 Vdc, 2.2 A Lithium battery
Battery life: 2 years with energy saving function activated
Dimensions (D×W×H): 68,3×75,4×189,4mm
Compatibility: RAPTOR control panels, range XSAT WS4
Protection class: IP55
