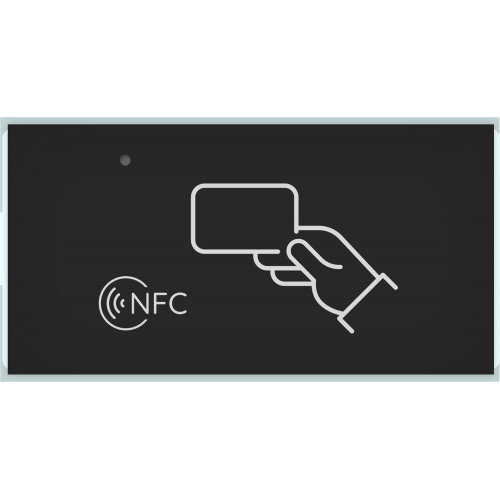

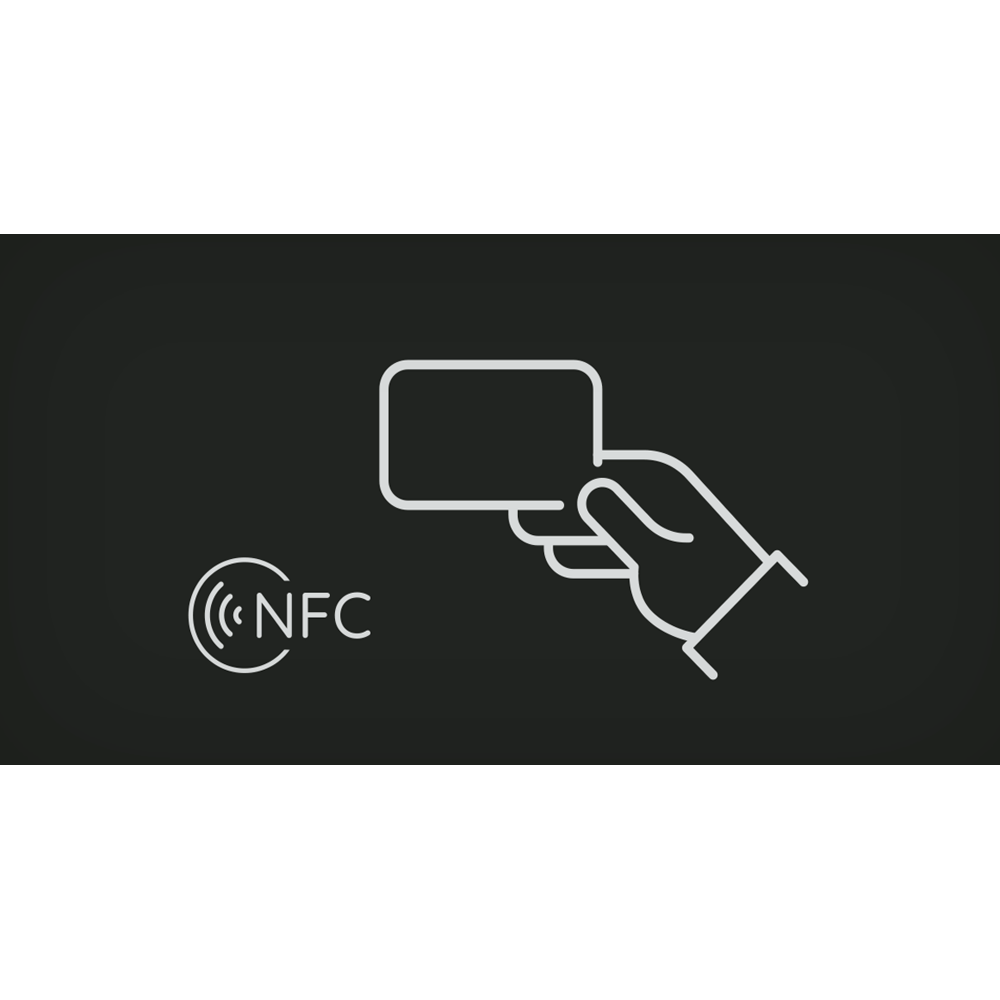

S3501/NFC | NFC Reader Module | SUPRA

Brand: Golmar
Product Code: GO12583501

Stand-alone access control module by means of a NFC 13.56MHz reader
Module to be used on SUPRA panels
Basic programming via local micro-switch and light and acoustic indicators or via Wi-Fi through internal web server (requires NFC/IN installer card)
Up to 2,000 user cards, stored in up to 30 user groups
30 user groups
Smartphones with Android operating system and NFC technology can work with this access control using the OpenGo app available on the Google Play Store
Compatible with NFC/US cards and TAGNFC/US keyfobs
2 relay outputs (NO, C, NC) for doors, with independent inputs for remote activation
Programmable activation time (3 to 99 seconds)
Tamper alarm and panic output
12VAC or 18 to 24VDC power supply. It is possible to use the power supply of the outdoor panel.
½ height

Type Function	Autonomous
Reading / Detection Type	Proximity
RFID Frequency (MHz)	13.56
RFID Reading /coverage distance (cm)	7
Use	Exterior,Interior
Max. Users	2000
Signaling	Led
Display	No
Expandable	No
Antenna	No
Relay contacts	No
Incorporates base	No
Incorporates cover/front panel	No
State LEDs	Yes
Input voltage	12Vca,18Vcc
Powered by controller	Yes
Material	1
