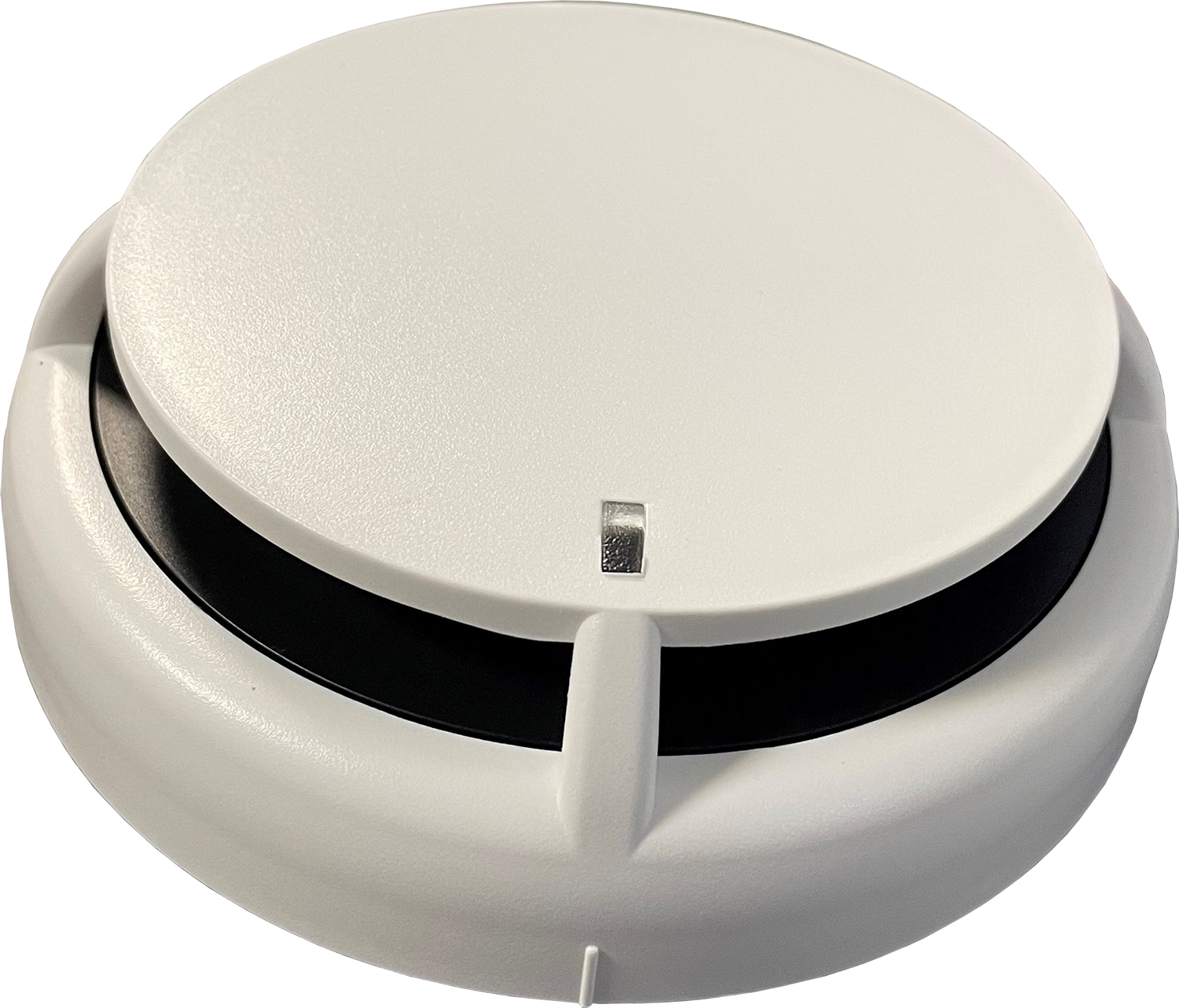

DT50PLUS | Series 50 Conventional High-Temperature Heat Detector

DT50PLUS | Series 50 Conventional High-Temperature Heat Detector

Brand: Golmar
Product Code: GO21121404

  • Thermal Detector Sensitive to Slow Temperature Rises
  • Manufactured according to EN 54-5  Class B standard
  • Alarm temperature: 70ºC
  • Coverage area: 20 m² (EN 54-14 standard)
  • Supply voltage: 12 to 30 V DC, polarity-free
  • Average standby current: 30 µA at 18 V DC
  • Average alarm current: 35 mA at 18 V DC
  • Alarm indication via red LED
  • Output for repeater action
  • Supplied without base
  • Certified by AENOR
  • Weight: 74 g
  • Dimensions: 110 (Ø) × 32 (H) mm
Download Image

  • Installation type: 2 wires
  • Technology: Conventional, wired
  • Series: CCG, Series 50
  • Detector type: Thermal
  • Function: Heat detector
  • Alarm activation temperature: 70°C
  • Visual indication: 1 LED indicator light
  • Remote indicator output: Yes
  • Relay contacts: No
  • Built-in camera: No
  • Installation area: Indoor
  • Mounting base included: No
  • Operating mode: With conventional fire detection panel
  • Operating voltage: 30μA @ 18Vdc / 35μA @ 18Vdc
  • Certifications: EN 54-5 Class B, AENOR
  • Dimensions:
    • Height: 32mm
    • Diameter: Ø110mm
