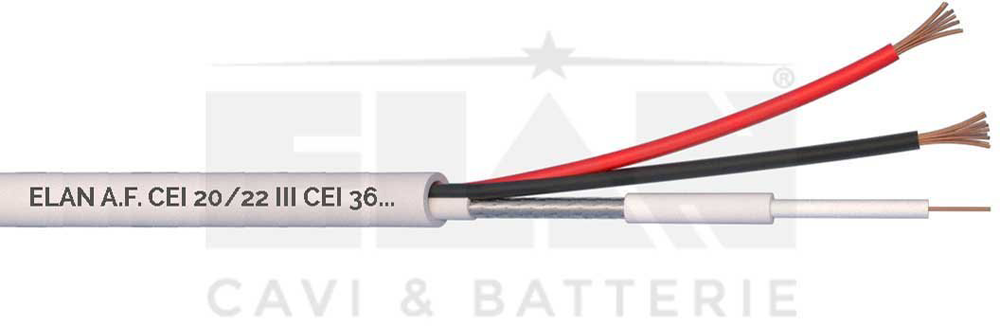

ELAN composite CCTV cable with 75 Ω MINI COAX and two 0.75 mm² conductors for video and power in the same route.

Its 75 Ω coaxial construction provides controlled signal transmission, while the shielding helps reduce external electromagnetic interference.

• Cable type: MINI COAX 75 Ω + 2 × 0.75 mm²
• Centre conductor: Copperweld / copper-clad steel core Ø 0.64 mm
• Characteristic impedance: 75 Ω
• Shielding: aluminium braid 112 × Ø 0.12 mm with shielding foil
• Jacket: PVC
• Additional conductors: 2 × 0.75 mm² bare copper, 14 × Ø 0.240 mm, red/black
• Packaging length: 100 m

Outer diameter (Ø): 8.00 mm
