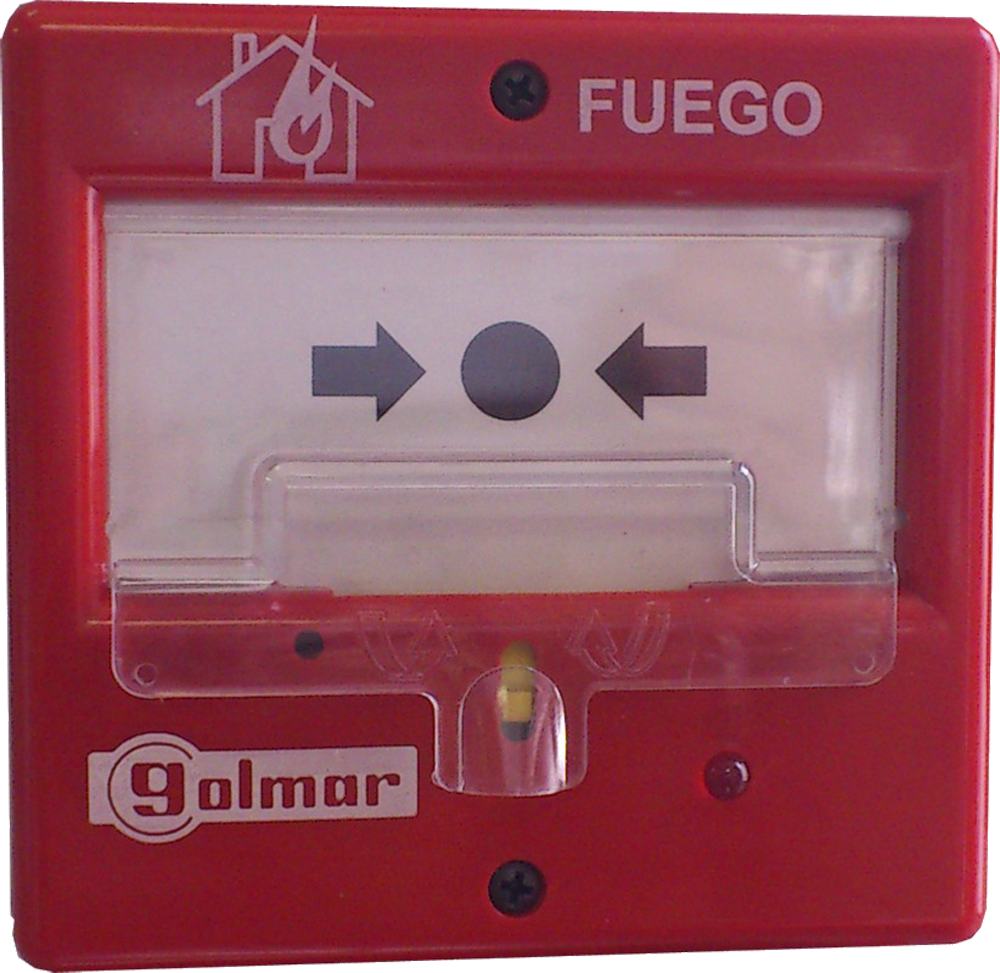

Manually resettable alarm button for conventional fire detection systems.

Incorporates an activation indicator (LED) that lights up when an alarm is manually activated and a yellow tab appears at the bottom of the operating surface.

The button is easily reset by pressing the yellow switch on the front.

• Surface mounting.
• Red alarm LED indicator.
• Methacrylate and red ABS plastic finish.

• Power supply: 20 VDC - 24 VDC, non-polarized
• Standby consumption: 0 mA
• Alarm consumption: 35mA (18Vdc)
• Power indicator: Red LED
• Remote control output: No
• Operating humidity: 20 - 95% RH
• Operating temperature: 0°C to +40°C
• Manufactured according to EN 54-11
• AENOR certified product
• Dimensions: 100 x 90 x 45 mm
• Protection degree: IP54
