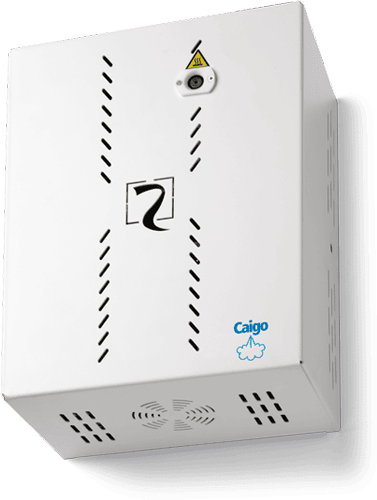

FOGGY 30W | Fogging Protection System

Brand: AVS
Product Code: AS01176113

Coverage volumes: 10” activation: 100 m³ / 20” activation: 200 m³ / 60” activation: 300 m³, 60” of pulsed activation: until 1900 m³
Tank capacity: 1 liter
Number of activations: 50 activations of 10” each / 16 activations of 360” each
Wireless antirobbery (standard receiver), BIP remote control (optional)
Nozzles available: 90° with one jet (standard) / 3 with different angles (optional)
Supplying 220 Vac
Consumption during heating 600 Watt
Maintenance consumption: 60/120 Watt
Back-up battery: 2x 12 Vdc 1,2Ah
Initial heating time: 12 minutes
Heating time after an activation: max 3 minutes
Functioning during mains 230 Vac absence: max 1 hour
Status indication by led and display
Inputs for system arming: according to alarm system on/off
First stage: pre-alarm second stage: alarm jet activation
Indication outputs: Delivery on
Tampering, liquid Level, technical trouble, mains absence, battery level, damaged battery, pump malfunctioning, PCB temperature, heater temperature
Output 12 Vdc
System cabling universal standards with outputs at free exchange
Event memory: 1000 events
System diagnosis: Via USB connection on the control PCB or with GSM remote connection by optional PCB XGSM
Firmware updating via PC with dedicated software
Metal housing available in three different colours: white (FOGGY 30W), grey (FOGGY 30G) and anthracite (FOGGY 30A)
Dimensions (LxHxD): 358x264x166 mm
Weight 15 kgs
IMQ APPROVAL EN50131-8
SUPPLIED WITH FULL TANK AND SINGLE-JET 90° NOZZLE
