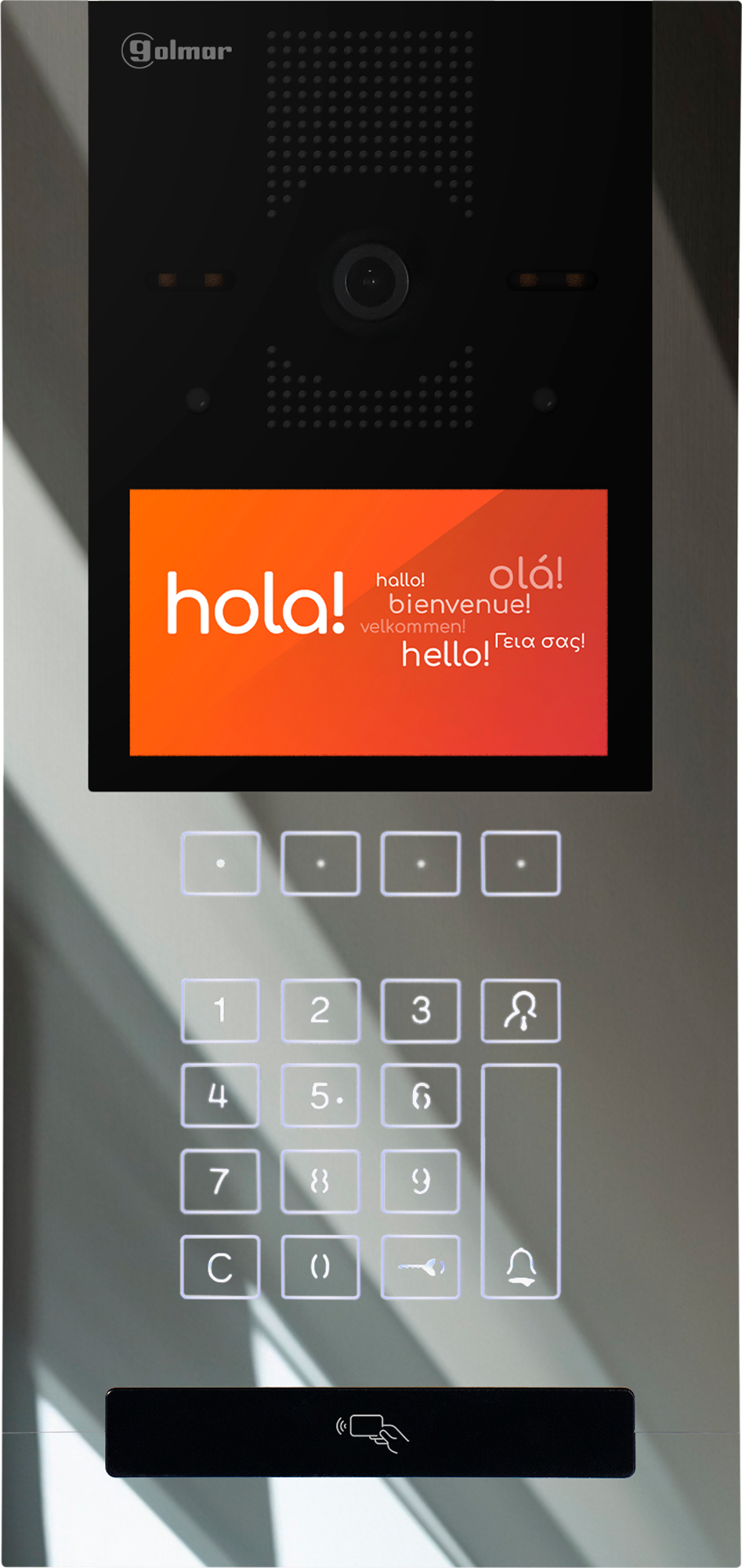

6502/GCLOUD INOX | Stainless Steel Coded Panel

Brand: Golmar
Product Code: GO12626502X

Coded panel with GCLOUD technology

Vandal resistant (IK-07) and weatherproof (IP-65) panel made of 5mm thickness AISI 316 stainless steel with mirror effect
2MPx HD 130º wide angle camera with white self-starting LEDs for night vision
4.3" panoramic TFT LCD colour screen with 480x272px resolution
Inductive loop antenna for the heard impairment people
Presence sensor and ambient light sensor
Backlit metal buttons with silk-screen printing of numbers
Acoustic confirmation tones when buttons are pressed
Coded keyboard that allows two calling methods: introduction of the code of the house to call or by search in the phonebook
RFID proximity reader for up to 2000 cards. 13,56 MHz cards are accepted
Connection through RJ-45 port
Dimensions: 155(W) × 318(H) × 5(D)mm

Leaflet

The panel includes Wiegand 26 (input/output) as standard:

Input: allows the connection of an external reader; the panel validates proximity and PIN.
Output: the panel acts as a reader, sending proximity and PIN identifications to Wiegand controllers (WCONTROL or iP-OPENER).

*In versions with a 2SAFE antenna, proximity must be managed using iP-Opener 2SAFE or EASYGATE controllers.

Direct call button to the guard that can be deactivable
Possibility of displaying the door panel images in its own screen in a communication process
Basic programming via the menu in the screen and advenced settings through the web client
Remote programming through the "Sixty5 cloud" website
Anti-sabotage alarm tamper
12 Vcc input for local power
2 relay contacts and 2 exit push button inputs
Requires a CE-6502 SE / CE-6502 TE embedding box
