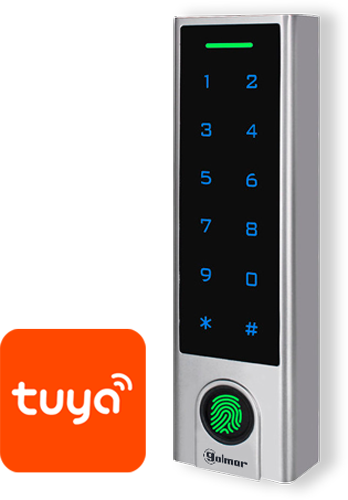

AIO-KEY | Multi-ID Reader

Brand: Golmar
Product Code: GO20720014

Waterproof keypad with fingerprint, PIN and proximity reader
For standalone operation
Capacity for up to 100 fingerprints and 888 users with PIN or proximity
Compatible with APP TUYA via WiFi connection (APP TUYA compatible only in standalone use)
Capacity for up to 500 users in management with APP TUYA.
IP66 protection degree
Dual frequency band (13,56MHz and 125KHz)
Compatible with CARDDOOR MF+, TAGDOOR MF+, ISOPROX and KEYPROX cards and keyfobs.
Three contact output relay (C, NO and NC)
Indoor or outdoor wall installation
Standalone mode requires 12Vd.c. power supply.
Dimensions: 43.5(W) x 148(H) x 22(D) mm

Type Function	Standalone,Slave
Connection	WiFi
Reading / Detection Type	PIN,Proximity,Fingerprint,WiFi
RFID Frequency (KHz)	125
RFID Frequency (MHz)	13.56
Use	Outdoor,Indoor
Max. Users	1000
Mounting	Surface
Relay contacts	Yes
Incorporates base	Yes
State LEDs	Yes
Input voltage	12Vdc,18Vdc
Powered by controller	Yes
Degree of protection (IP)	66
Rest consumption (W)	0.72
Max. consumption (W)	1.8
Maximum working temperature (ºC)	60
Minimum working temperature (ºC)	-20
Dimensions - High (mm)	148
Dimensions - Width (mm)	43.5
Dimensions - Deep (mm)	22
