050041S | Alarm Cable 4×0.22 mm² ∙ PVC ∙ Tinned Copper ∙ 100 m

Brand: Elan
Product Code: EL0050041S

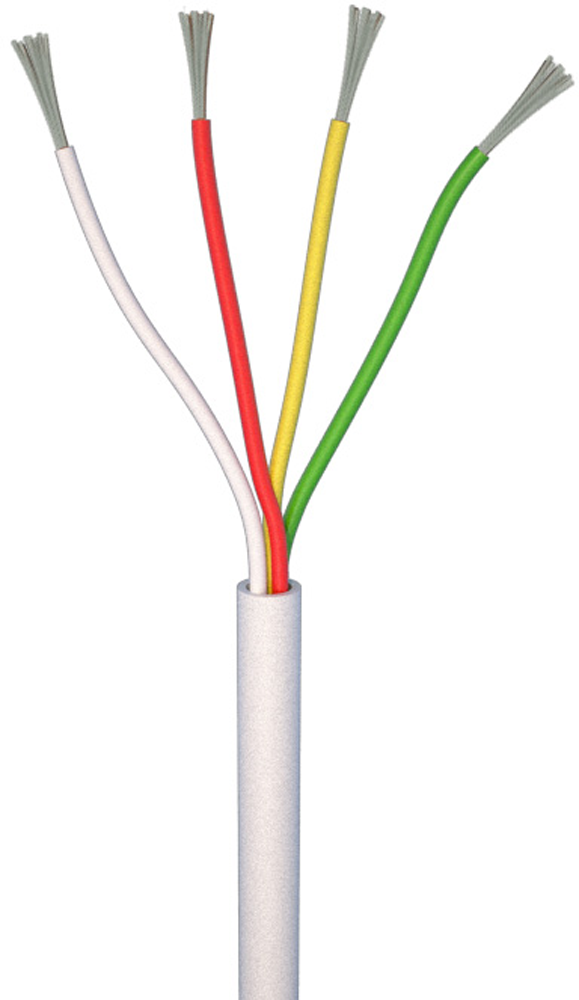

ELAN 4 × 0.22 mm² alarm and control cable for fixed signal, command and communication lines.

Its flexible stranded construction supports practical installation in conduits and cable routes. Tinned conductors are the key construction difference of the S version.

Conductor configuration: 4 × 0.22 mm²
Conductor construction: flexible tinned copper, 7 × Ø 0.170 mm
Jacket: semi-pressed white RZ-type flame-retardant PVC
Packaging length: 100 m

Outer diameter (Ø): 3.80 mm

Leaflet

Download Image

General

Cable category: Alarm / control cable
Cable type: Unshielded PVC cable
Conductor configuration: 4 × 0.22 mm²

Performance & Technical Characteristics

Conductor resistance: Max. 110 Ω/km at 20 °C
Insulation resistance: Min. 200 MΩ/km at 20 °C

Electrical & Power

Operating voltage: ≤100 V
Test voltage: 1,000 V at 50 Hz
Cable voltage rating: CEI 36762 C-4, U₀ = 400 V

Construction & Mechanical

Colour: White jacket · white, red, yellow and green cores
Conductor material: Tinned copper
Conductor cross-section: 0.22 mm² per conductor
Conductor construction: 7 × Ø 0.170 mm, flexible stranded
Conductor insulation: R2-type PVC, thickness >0.20 mm, insulated conductor diameter Ø 1.00 mm
Shielding: No metallic shielding
Jacket: Semi-pressed white M1 PVC, RZ type, thickness >0.50 mm
Outer diameter: 3.80 mm
Weight per unit length: 17.55 kg/km
Minimum bend radius: 12 × outer diameter, 45.6 mm

Installation & Compatibility

Installation type: Indoor fixed installation
Cabling requirements: Suitable for routing with 450/750 V and 0.6/1 kV power cables according to CEI UNEL 36762

Environment & Protection

Operating temperature: −15 °C to +80 °C
Installation environment: Indoor

Standards & Compliance

Applicable standards: CEI 20-11 · CEI 20-29 · CEI 20-20 · CEI 20-22 III · CEI 36762 · IEC 60332 · IEC 60332-3 · BS EN 50265
CPR class: Eca
CPR harmonised standard: EN 50575:2014+A1:2016
CE compliance: Yes
RoHS compliance: Yes
Declaration of Performance: A/009/2020

Packaging & Contents

Packaging length: 100 m

Unshielded alarm and control cable for indoor fixed signal and communication installations. The 4 × 0.22 mm² configuration provides four distinct low-voltage conductors in a compact and flexible construction for professional security-system wiring.

The stranded tinned copper conductors are combined with colour-coded PVC insulation for clear identification during wiring. The white M1 PVC outer jacket is flame-retardant, while CPR class Eca covers the declared reaction-to-fire performance for general applications in construction works.

The CEI 36762 C-4 classification permits combined routing with 450/750 V and 0.6/1 kV power cables in accordance with CEI UNEL 36762. The 050041S is the 4-conductor version of the range, with corresponding 6- and 8-conductor options for installations requiring additional lines.

With a 3.80 mm outer diameter, a weight of 17.55 kg/km and a minimum bend radius of 45.6 mm, the main mechanical limits are clearly defined for route planning and installation. The 100 m package completes a practical format for organised procurement and wiring work.

Product identity

Manufacturer: ELAN s.r.l.
Manufacturer code: 050041S.
Product type: Unshielded alarm / control cable.
Range configuration: 4-conductor version; the corresponding 6- and 8-conductor versions are identified as 050061S and 050081S.

Conductor and core construction

Conductor configuration: 4 × 0.22 mm².
Conductor material: Tinned copper.
Construction of each conductor: 7 strands, each 0.170 mm in diameter, in a flexible stranded configuration.
Insulated conductor diameter (Ø): 1.00 mm.
Conductor insulation: R2-type PVC, thickness >0.20 mm.
Core colours: White, red, yellow and green.
Core assembly: Conductors helically laid and wrapped with polyester foil.
Shielding: No overall or individual metallic shielding.

Jacket and mechanical characteristics

Outer jacket: Semi-pressed white M1 PVC.
Jacket material: Flexible RZ-type PVC.
Flame behaviour: Flame-retardant according to CEI 20-22 III / IEC 60332-3.
Outer jacket thickness: >0.50 mm.
Cable outer diameter (Ø): 3.80 mm.
Weight per unit length: 17.55 kg/km.
Minimum installation bend radius: 12 × the outer diameter, corresponding to 45.6 mm.
Operating temperature: −15 °C to +80 °C.

Electrical characteristics

Operating voltage for the 0.22 mm² conductors: ≤100 V.
Test voltage: 1,000 V at 50 Hz.
Maximum conductor resistance at 20 °C: 110 Ω/km.
Minimum insulation resistance at 20 °C: 200 MΩ/km.
Cable classification: CEI 36762 C-4 (U₀=400 V).

Installation and combined routing

Installation environment: Indoor.
Installation method: Fixed installation in suitable protected routes.
Combined routing: With 450/750 V and 0.6/1 kV power cables in accordance with CEI UNEL 36762.
Cable marking: ELAN A.F. CEI 20-22 III – CEI 36762 C-4 (U₀=400 V).

Standards and compliance

Manufacturing standards: CEI 20-11, CEI 20-29, CEI 20-20, CEI 20-22 III and CEI 36762.
Flame-performance standards: IEC 60332 / IEC 60332-3 and BS EN 50265.
Construction Products Regulation: Regulation (EU) No. 305/2011.
Harmonised CPR standard: EN 50575:2014+A1:2016.
Declaration of Performance (DoP): A/009/2020, dated 05/03/2020.
CPR intended use: Control and communication cable for general applications in construction works subject to reaction-to-fire requirements.
Reaction-to-fire class: Eca.
Assessment and Verification of Constancy of Performance: System 3.
Notified body: LAPI SPA, No. 0987.
Declared dangerous substances: None.
CE compliance: Yes.
RoHS compliance: Yes.
Phthalate-free: Yes.
