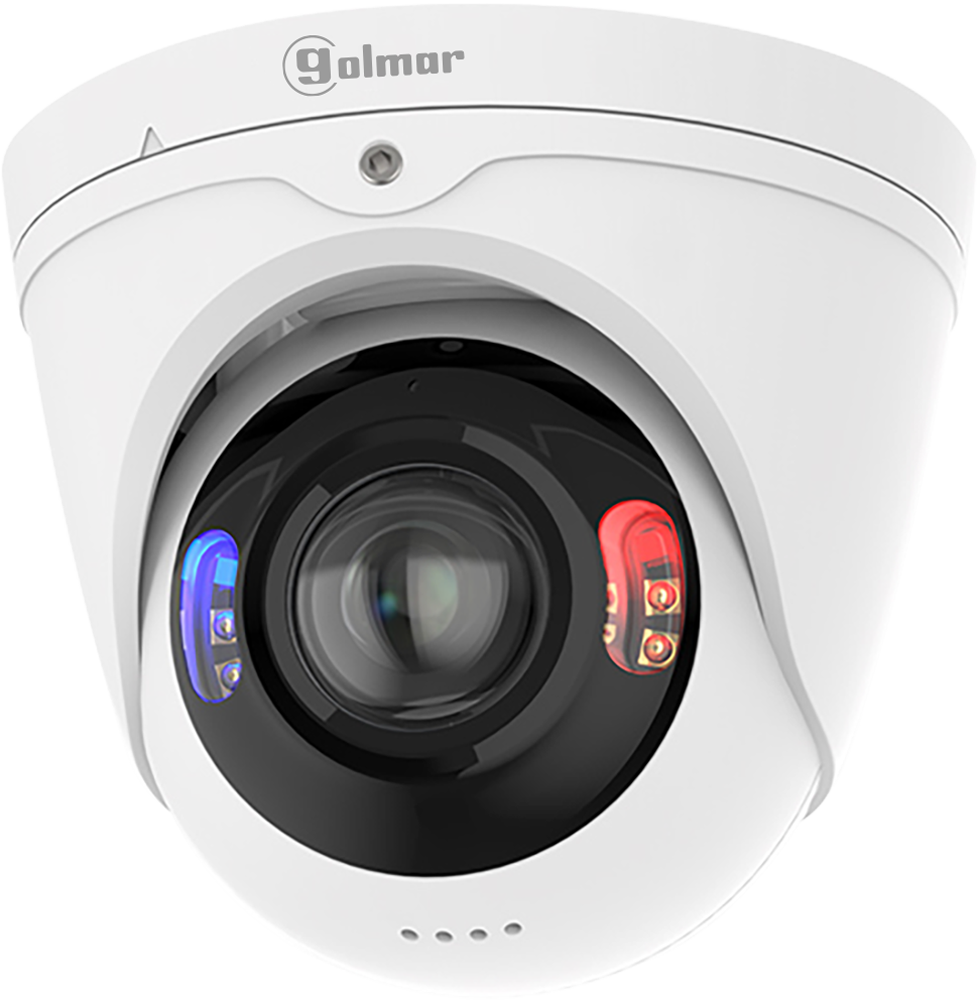

CIP-180D8 | Panoramic 8MP Camera

CIP-180D8 | Panoramic 8MP Camera

Brand: Golmar
Product Code: GO31600927

  • FULL COLOR Dome with 8MP resolution
  • Fixed lens of 2.0mm
  • FOV of 180° without the need for dewarping
  • Blue and red LEDs for deterrent effect
  • Advanced video analytics
  • 120dB WDR
  • Two-way audio (built-in microphone and speaker)
  • MicroSD card slot (max. 256GB)
  • 12Vdc or PoE power supply
  • Compatibility: C-BASE02 and C-BASE04
  • Dimensions: 97.7mm (Ø) × 116.5mm (Β)
Download Image

  • Type: Dome
  • Technology: IP
  • Image sensor: 1/2.8" progressive CMOS
  • Max. Resolution: 8MP
  • Images per sec.: 20 FPS
  • Colour: White
  • Mounting: Ceiling
  • Lense: Fixed
  • Focal length: 2.0mm
  • Max. Aperture ratio: 2.4
  • Horizontal field of view: 180º
  • Vertical field of view: 91º
  • Night vision mode: Day/Night
  • White light distance: 25m
  • IR distance: 15m
  • WDR: Yes
  • Additional functions: AWB, BLC, AES, DNR, 3D-DNR
  • Bitrate: 256Kbps ~ 16Mbps
  • Main Stream: 20fps @ 8MP (3840×2160), 5MP (2592×1944, 3072×1728), 4MP (2592×1520), 3MP (2304×1296), 1080p (1920×1080), 960p (1280×960), 720p (1280×720)
  • Sub Stream: 20fps @ 720p (1280x720), VGA (640x480)
  • Video compression: H.264, H.265
  • Video Analysis: LCD, PID, PD, VD, SOD, CC, HM
  • Internal storage: Yes (max 256Gb)
  • Network interface: RJ45
  • Built-in microphone: Yes
  • Built-in speaker: Yes
  • Integrated WiFi: No
  • Remote Access / App: Web, App GolmarView, VMS Pro
  • Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
  • Compatibility: C-BASE02 and C-BASE04
  • Degree of protection: IP67
  • Material: Aluminium
  • Maximum working temperature: 60ºC
  • Minimum working temperature: -35ºC
  • Relative humidity work (max.): 95%
  • Input voltage: 12Vdc, PoE
  • Included power supply: No
  • Max. consumption: 13W
  • Dimensions:
    • Hight: 97.7mm
    • Diameter: 116.5mm
  • Weight: 587.5g
  • Certifications: CE, RoHS
