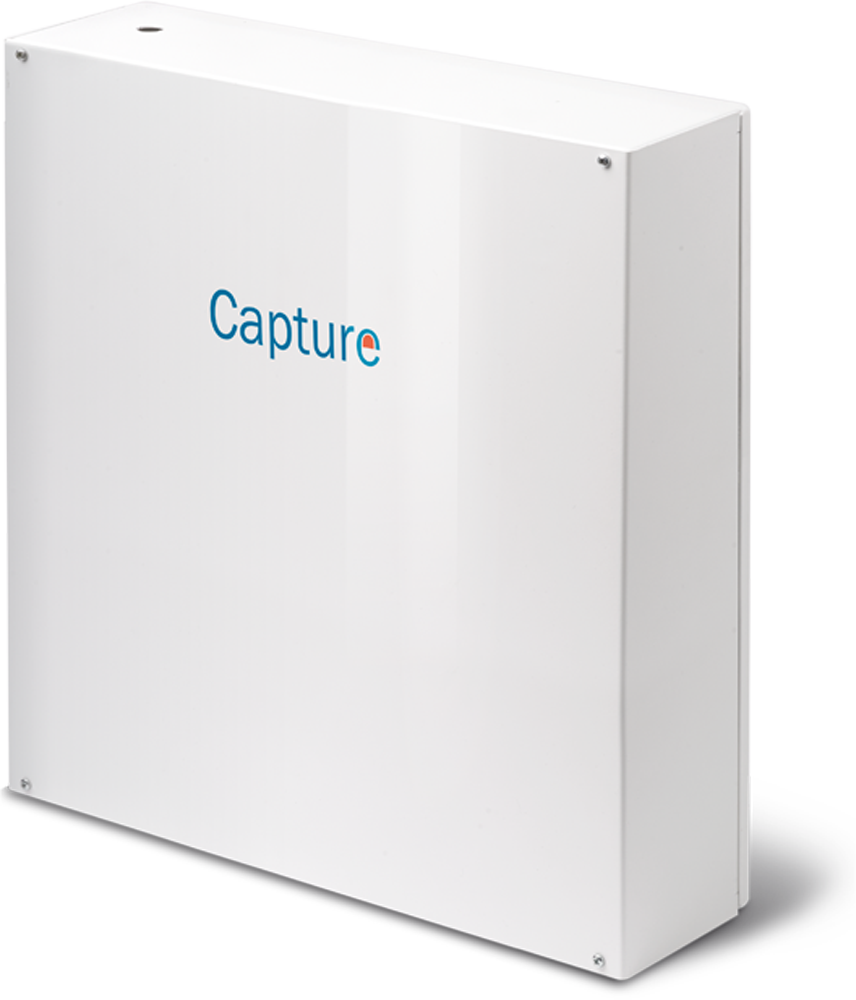

Control panel 32 zones with remote management

- Configurable zones: 8 basic zones on the main PCB and up to 32 with expansions

- NC inputs, NO inputs, 1 resistor or 2 resistors inputs, switch alarms, inertial detectors

- Zone mapping function

- Zone expansions on RS485 bus: up to 8

- Areas/sections: 8 with 4 arming modes each + macro functions

- RS 485 serial sirens: up to 8 HP sirens

- RS 485 serial detectors: up to 32 with expansions

- Outputs: 3 on the control panel and 4 zones that can be used as outputs and up to 32 with expansions (relay + O.C.)

- Keypads: up to 8 ICE, A500, A500 Plus, A600 EVO, A600 EVO PLUS

- Codes and keys: 128 user codes, 128 emergency codes, 128 remote controls, 128 proximity tag

- Programming of system: via keypad or with XWIN software

- USB port for configuring the system and updating the firmware

- RS485 serial buses: one RS485 Bus supervised with diagnostics using XWIN software and the keypad

- PSTN telephone dialler: integrated, sending of calls with digital protocols and voice messages to a max of 16 telephone numbers

- optional GSM dialler: XGSM and XGSM485/ PRO, sending and receiving of SMS messages, digital protocols and voice messages to a max of 16 telephone numbers, MYAVSALARM App available

- ETHERNET TCP-IP network module, WEB SERVER and MYAVSALARM App: optional EWEB Plus, EWEB WiFi

- Speech synthesis and audio output: optional DIGIVOC with more than 300 personalisable words and HELP guide for listening to voice messages, and HELP guide with ICE and A500 Plus keypads

- Memory: more of 500 events

- Integrated time programmer with 16 daily operations and holiday management

- Operating Temperature: -10°C to +55°C

- Power supply unit: 13.8 Vdc 1.6 A switching, 12 Vdc 18 Ah battery

- Metal housing dimensions (LxHxW): 311 x 375 x 96 mm

INCERT EN 50131 Grade 2 CERTIFICATION
